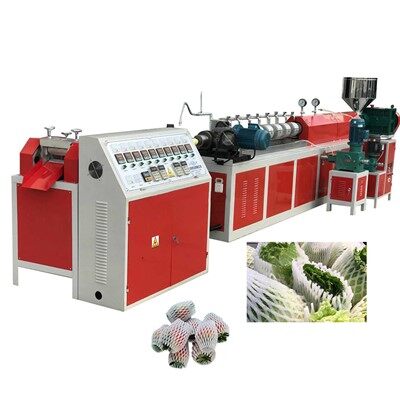

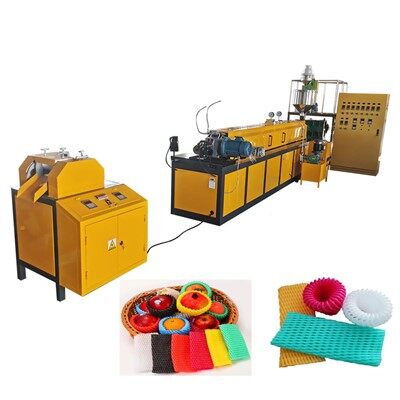

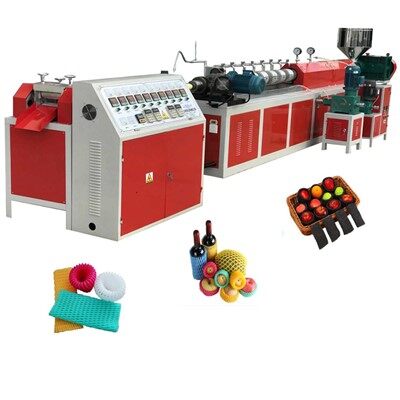

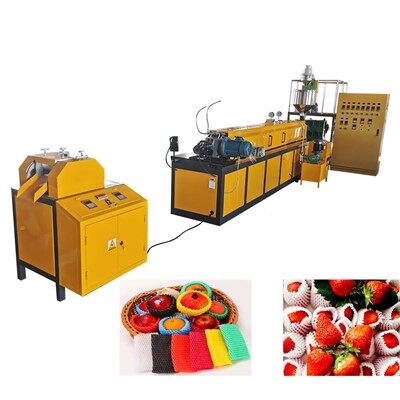

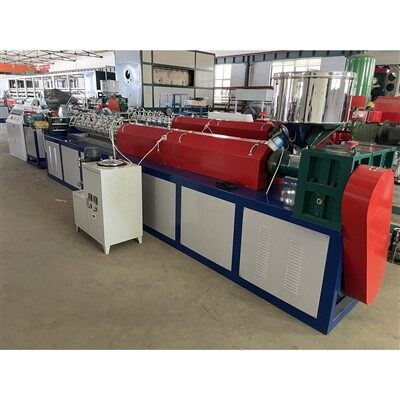

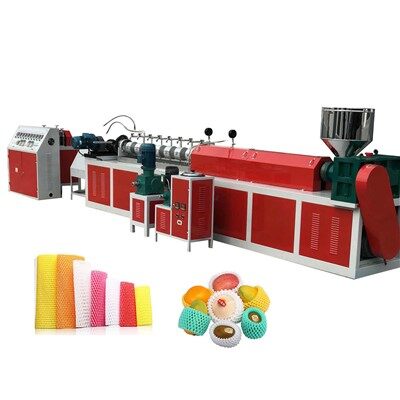

Epe foam net making machine EPE foam net machine is an excellent tool for any business looking to improve their packaging and insulation processes. It is a positive investment that can ultimately lead to increased productivity and profitability.

product-1600-740

Details Images

Automatic feeding device and feeder table

Auto feeding unit 1 set
Feeding capacity: 100-150 kg/hr
Feeding method: Auto feeding
Hopper: conical CE standard
Driving motor: 1
set power: 0.3 KW
Hopper capacity: 100 kg
Hopper with sight-glass
Operation table of blending materials : Made of ss41 steel CE standard
Steel ladder: made of ss41 steel CE standard
Remark: If you don't need the automatic feeding unit, we can also equip with mixer.

Extruding unit

Screw tube
Diameter: ∮140mm
Material: 38CrMoAlA nitrogen treatment
Heating area：7pcs
Method of heating：cast aluminum heater Method of cooling: outer water cooling

Screw
Diameter: ∮75(L/D-55：1)
Material: 38CrMoAlA nitrogen treatment Compression ratio: 3：1
Rotating speed: 0-48r/min

Screen changer and die head unit

Screen changer unit
Do not stop to change the network
Heating power: 3 KW
Heating zone: 1 pc

Die head unit
Type: Circular die head
Quantity of die head: 1 set
Material:carbon and alloy steel
Heating zone: one
Heating method: Heating circular
Die motor: 3 KW

Haul-off and cutting unit

Length controlled: controlled by haul-off Material of the knife: carbon and

product-1600-2134

alloy steel Driven type: motor drives gear box, controlled by inverter.
Motor power: 0.75kw*2 (speed regulation) Count control: meter controller can be preset alarming

Product Specifications

Model	Units	SH-70	SH-75
Extruder		70/55	75/55
L/D		55:1	55:1
Capacity	kg/h	25-30	40-50
Foaming rate		10-40	10-40
Installed capacity	kw	28	32
Overall size	mm	5500×1200×1700	800013001700
Weight	T	3.5	4

Packaging

FOAM NET MACHINE1

FAQ

Q: Will you conduce training for our staff here?

A: Yes, we will arrange professional engineers to install and test machine and train the buyer's engineers.

Q: How about the visiting?

A: We are located in Longkou City, Shandong Province, China. The nearest airport is Yantai Airport. You can transfer from Guangzhou, Beijing or Shanghai airport to Yantai airport. We will pick you at the Yantai airport when you come to visit us.

Q: Could I test machine before placing order?

A: We will make the machine running during your visiting to check the working condition. And there are some client who bought our machine in our city. We will take you to their factory to check all working flow.

Q: How many countries have your machine been installed?

A: Our machines have exported many countries such as Korea, Japan, Kazakhstan, Uzbekistan, Malaysia, Russia, Poland, France, Turkey, Thailand, Vietnam, Brazil, Columbia, Argentina, Costa Rica, Algeria, Nigeria, Malawi, Bolivia, Sudan, Jordan, Egypt, South Africa, etc.

Q: What are your terms of payment?

A: We accept T/T, L/C, Western Union and Cash.

Q: Guaranty period?

A: One year guaranty for the machine and 6 months for the electrical appliances.
