PP Knotless Net Making Machine

PP Knotless Net Making Machine

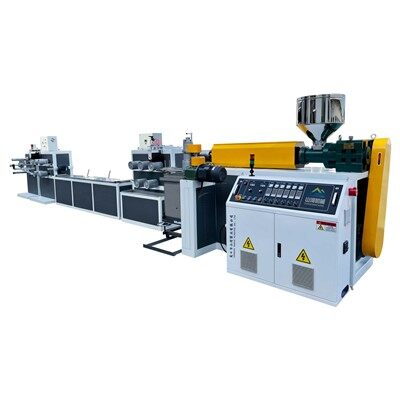

The fruit stretching net extruder is an automated equipment designed specifically for fruit and food packaging.
It uses environmentally friendly materials such as polyethylene (PE) or polypropylene (PP) melted at high temperatures, extruded through molds, stretched into a mesh structure,and then cooled and shaped into an elastic mesh sleeve.
Its core components include extrusion system, stretching mold, cooling device, and winding mechanism, which can quickly produce net with different apertures and thicknesses,suitable for the protection needs of fruits such as apples, pears, and citrus. The equipment has the characteristics of high efficiency and energy saving (with a production capacity of up to 30-40kg/h), easy operation, etc.
The finished mesh can effectively buffer the impact of transportation, reduce fruit abrasion, and extend the shelf life. Widely used in the fields of fruit and vegetable processing, warehousing and logistics, it is one of the key machinery for modern fruit packaging.
Send Inquiry
Description
Technical Parameters
Main Technical Parameter

The fruit stretching net extruder is an automated equipment designed specifically for fruit and food packaging. It uses environmentally friendly materials such as polyethylene (PE) or polypropylene (PP) melted at high temperatures, extruded through molds, stretched into a mesh structure, and then cooled and shaped into an elastic mesh sleeve. Its core components include extrusion system, stretching mold, cooling device, and winding mechanism, which can quickly produce net with different apertures and thicknesses, suitable for the protection needs of fruits such as apples, pears, and citrus. The equipment has the characteristics of high efficiency and energy saving (with a production capacity of up to 30-40kg/h), easy operation, etc. The finished mesh can effectively buffer the impact of transportation, reduce fruit abrasion, and extend the shelf life. Widely used in the fields of fruit and vegetable processing, warehousing and logistics, it is one of the key machinery for modern fruit packaging.



Specification



Model

SHWJ-50

SHWJ-65

SHWJ-80

Screw diameter

50mm

65mm

80mm

Production Efficiency

10-12kg/h

20-30kg/h

30-40kg/h

Installed power

25kw

35kw

50kw

Machine weight

1.8T

2T

3T
